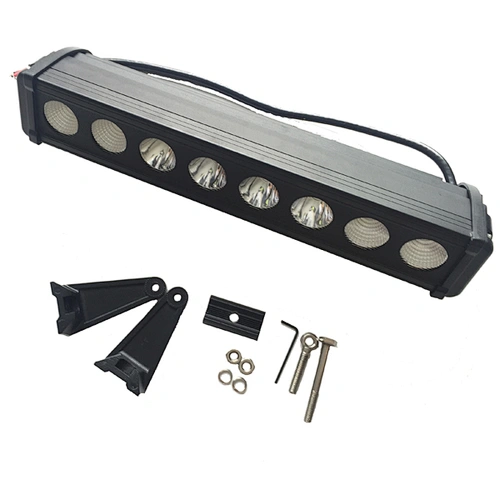

Single Row CREE 10W LED Light Bar
LED Power: 20W - 240W
Volt-Input: 12V/24V DC
LED Type: CREE XML 10W LED chips
Length: 4 Inch - 42 Inch
Colour temperature: 6500k Natural White
Beam Pattern:Flood Beam,Spot Beam,Combo Beam
House Material:Dia Cast Aluminum Housing
House Color: Black,Customizable
Lens: PC
Mounting Way: Side Mounting
Bracket Material: Aluminum Bracket
Wiring: Silica Gel 45cm
Certification: CE,RoHS,IP67,E-Mark(R10,R112)
LED Light Bar Single Row Specification
| Model Number | LED Power | Current | Row Lumens | Beam Type | Product size |
| (amps) | Spot/FloodCombo |
| Watt | (12V,24V) | lm | CM |
| NSL-2002SL-20W | 20W | 16,0.84 | 1600 | S/F | 11.5*8.7*10.2 |
| NSL-4004SL-40W | 40W | 3.20,1.67 | 3600 | S/F | 20.3*8.7*10.2 |
| NSL-8008SL-80W | 80W | 4.8,2.5 | 5200 | S/F/C | 28.0*8.7*10.2 |
| NSL-12012SL-120W | 120W | 8.0,4.17 | 7700 | S/F/C | 44.0*8.7*10.2 |
| NSL-16016SL-160W | 160W | 9.6.0,5.0 | 10000 | S/F/C | 52.0*8.7*10.2 |
| NSL-20020SL-200W | 200W | 14.2.0,7.5 | 16000 | S/F/C | 75.8*8.7*10.2 |
| NSL-24024SL-240W | 240W | 18.9.0,10.0 | 20000 | S/F/C | 98.0*8.7*10.2 |
| NSL-26026SL-260W | 260W | 20.5,10.84 | 22000 | S/F/C | 108.1*8.7*10.2 |
| NSL-28028SL-280W | 280W | 22.1,10.1 | 23800 | S/F/C | 115.5*8.7*10.2 |
| NSL-30030SL-300W | 300W | 23.7,11.8 | 25500 | S/F/C | 123.5*8.7*10.2 |
| NSL-32032SL-320W | 320W | 25.3,12.8 | 27200 | S/F/C | 130*8.7*10.2 |
