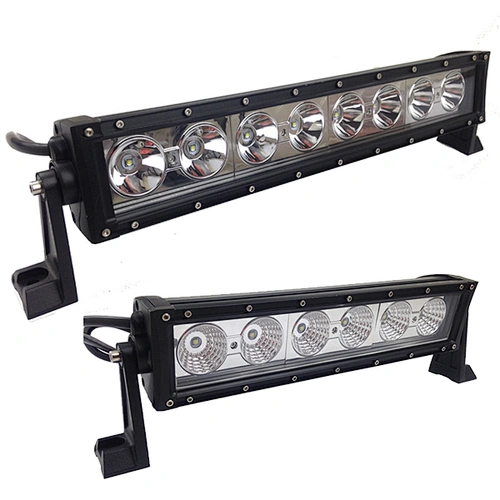

Single Row CREE 10W LED Light Bar

Single Row CREE 10W LED Light Bar

  • Model NO.: NSL-NL series LED Light Bar
  • Accept Min order:No

Single Row CREE 10W LED Light Bar

LED Power: 20W - 240W

Volt-Input: 12V/24V DC

LED Type: CREE XML 10W LED chips

Length: 4 Inch - 42 Inch

Colour temperature: 6500k Natural White

Beam Pattern:Flood Beam,Spot Beam,Combo Beam

House Material:Dia Cast Aluminum Housing

House Color: Black,Customizable

Lens: PC

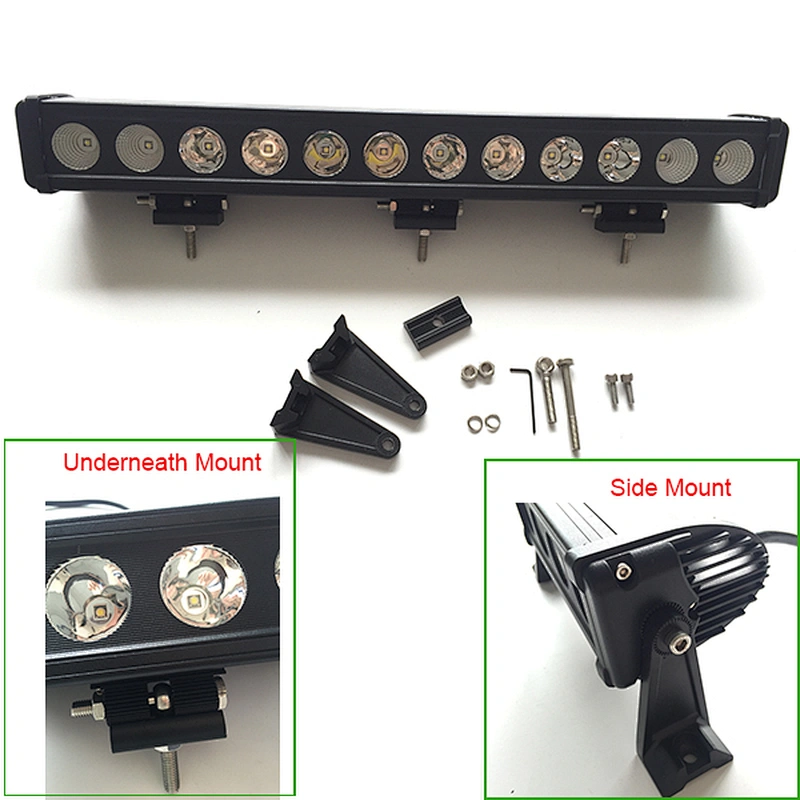

Mounting Bracket: Side Mounting & Bottom Mounting

Bracket Material: Aluminum Bracket

Wiring: Silica Gel 45cm

Certification: CE,RoHS,IP67,E-Mark(R10,R112)

LED Light Bar Single Row Specification

Model NumberLED PowerCurrentRow LumensBeam TypeProduct size
(amps)Spot/FloodCombo
Watt(12V,24V)lmCM
NSL-2002NL-20W20W1.6, 0.841600S/F12.5*9.7*7.2
NSL-4004NL-40W40W3.20, 1.673600S/F21.3*9.7*7.2
NSL-8008NL-80W80W6.8,  2.55200S/F/C40.0*9.7*7.2
NSL-12012NL-120W120W8.0, 4.177700S/F/C58.0*9.7*7.2
NSL-16016NL-160W160W9.60, 5.010000S/F/C75.0*9.7*7.2
NSL-20020NL-200W200W14.20, 7.516000S/F/C111.8*9.7*7.2
NSL-24024NL-240W240W18.90, 10.020000S/F/C110*9.7*7.2
NSL-26026NL-260W260W20.5, 10.8422000S/F/C121.1*9.7*7.2
