Single Row CREE 10W LED Light Bar

  • Model NO.: NSL-CL series LED Light Bar
  • Accept Min order:No

Single Row CREE 10W LED Light Bar

LED Power: 20W - 320W

Volt-Input: 12V/24V DC

LED Type: CREE XML 10W LED chips

Length: 4 Inch - 42 Inch

Colour temperature: 6500k Natural White

Beam Pattern:Flood Beam,Spot Beam,Combo Beam

House Material:Dia Cast Aluminum Housing

House Color: Black,Customizable

Lens: PC

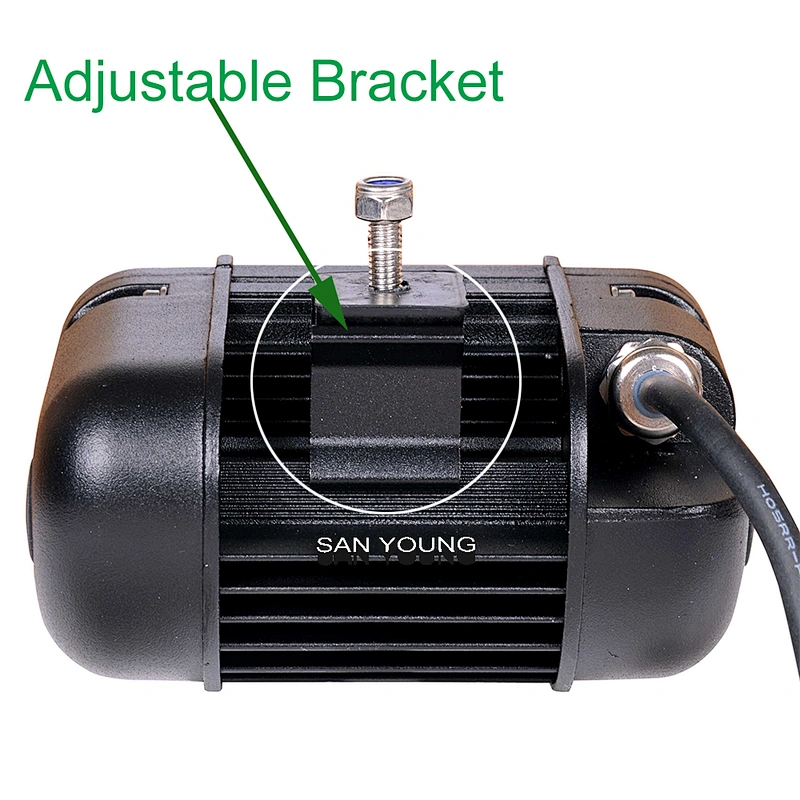

Mounting Bracket: Side Mounting

Bracket Material: Aluminum Bracket

Wiring: Silica Gel 45cm

Certification: CE,RoHS,IP67,E-Mark(R10,R112)

LED Light Bar Single Row Specification

Model NumberLED PowerCurrentRow LumensBeam TypeProduct size
(amps)Spot/FloodCombo
Watt(12V,24V)lmCM
NSL-2002CL-20W20W16,0.841600S/F11.5*6.4*9.2
NSL-4004CL-40W40W3.20,1.673600S/F20.3*6.4*9.2
NSL-8008CL-80W80W4.8,2.55200S/F/C28.0*6.4*9.2
NSL12012CL-120W120W8.0,4.177700S/F/C44.0*6.4*9.2
NSL-16016CL-160W160W9.6.0,5.010000S/F/C52.0*6.4*9.2
NSL-20020CL-200W200W14.2.0,7.516000S/F/C75.8*6.4*9.2
NSL-24024CL-240W240W18.9.0,10.020000S/F/C98.0*6.4*9.2
NSL-26026CL-260W260W20.5,10.8422000S/F/C108.1*6.4*9.2
NSL-28028CL-280W280W22.1,10.123800S/F/C115.5*6.4*9.2
NSL-30030CL-300W300W23.7,11.825500S/F/C123.5*6.4*9.2
NSL-32032CL-320W320W25.3,12.827200S/F/C134*6.4*9.2
