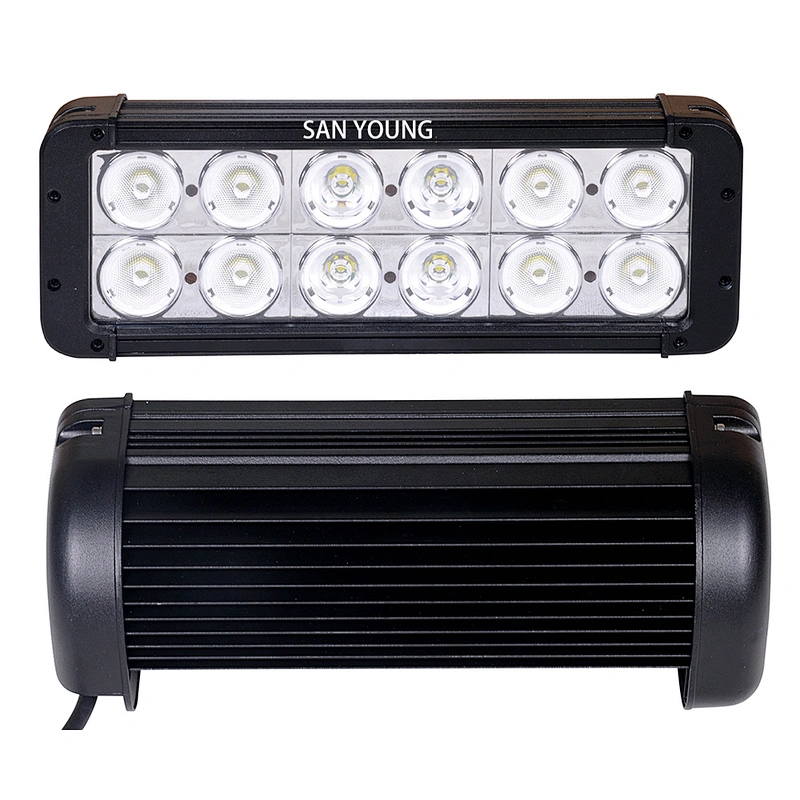

Dual Row CREE 10W LED Light Bar
Dual Row CREE 10W LED Light Bar
  • Model Number:NSL-DL series LED Light Bar
  • Accept Min order:No
Add Inquiry Basket
Like Favorites
Product Description

Dual Row CREE 10W LED Light Bar

LED Power: 40W - 240W

Volt-Input: 12V/24V DC

LED Type: CREE XML 10W LED chips

Length: 4 Inch - 22 Inch

Colour temperature: 6500k Natural White

Beam Pattern:Flood Beam,Spot Beam,Combo Beam

House Material:Dia Cast Aluminum Housing

House Color: Black,Customizable

Lens: PC

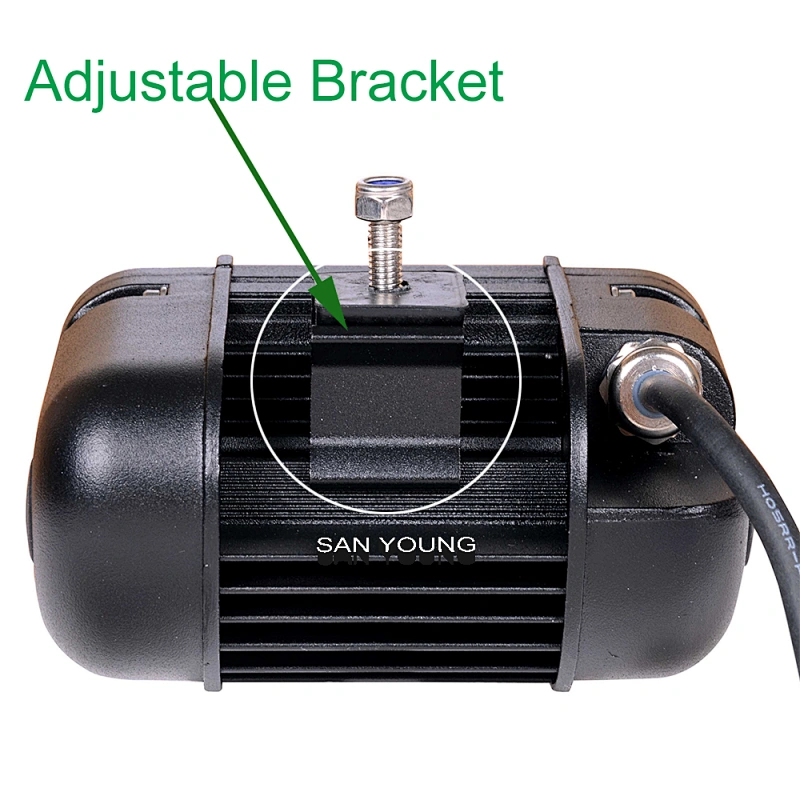

Mounting Way: Bottom Mounting

Bracket Material: Aluminum Bracket

Wiring: Silica Gel 45cm

Certification: CE,RoHS,IP67,E-Mark(R10,R112)

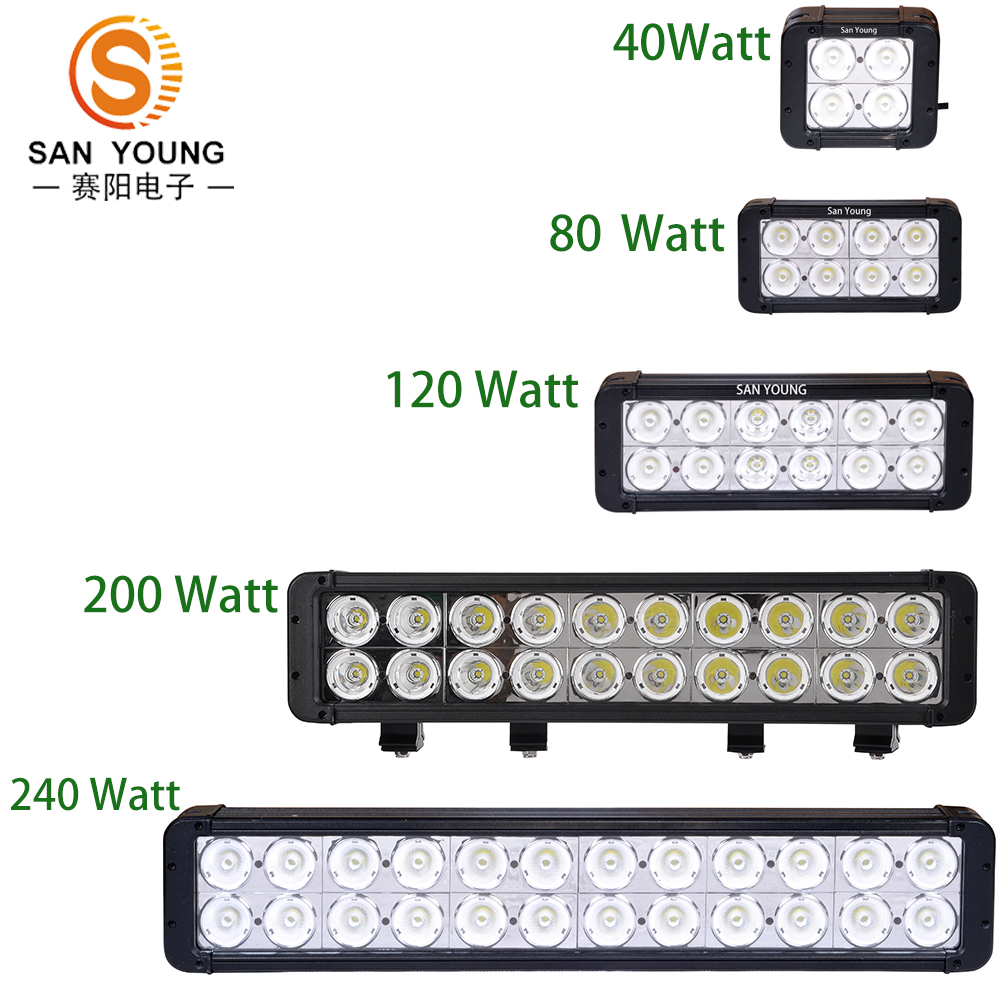

LED Light Bar Double Row Specification

Model  Number LED qty LED Power Current Color Temperature Row Lumen Beam Type Product size
CREE 10W (amps) Spot/FloodCombo
(12V,24V) lm mm
NSL-4004D-40W 4 40 3.0,1.5 6500K 3000 S/F 118*97*90
NSL-8008D-80W 8 80 5.8,3.0 6500K 6500 S/F 198*97*90
NSL-12012D-120W 12 120 9.2,4.7 6500K 11000 S/F/C 275*97*90
NSL-20020D-200W 20 200 15.3,7.9 6500K 17000 S/F/C 437*97*90
NSL-24024D-240W 24 240 18.5,9.8 6500K 21000 S/F/C 518*97*90
